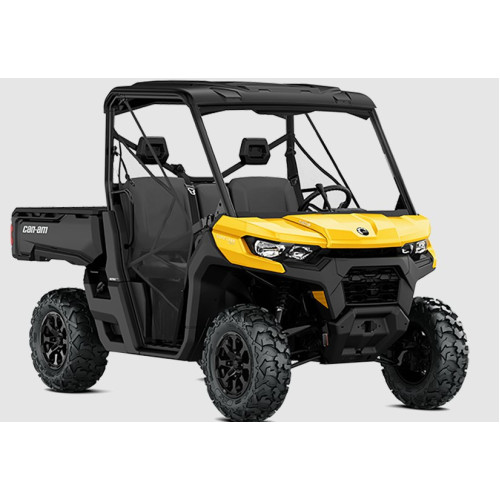

2025 Can-am Defender XU HD9
Product Code:
2025DEFXUHD9
PACKAGE HIGHLIGHTS
• New dash mounted Speed Limiter
• Full Hard Roof
• Brake Hold Mechanism
• Rotax ® 976 cc V-Twin Engine
• 27 in. 8ply XPS Trail Force
• 1,134 kg Towing Capacity
• Rear differential with Turf Mode
• Dynamic Power steering (DPSTM)
• 14 in. cast-aluminium wheels
Retail Price $30899.00
Click here to book at Click and Ride trial!
Price:
$0.00
Type 65 hp/59 lb-ft , Rotax ® 976 cc, V-twin, liquid-cooled
Fuel Delivery System Intelligent Throttle Control (iTC™)
with Electronic Fuel Injection (EFI)
Transmission PRO-TORQ CVT with Quick Response System (QRS),
high-airflow ventilation and Electronic Drive Belt Protection,
Extra-L/H/N/R/P
Drive Train Selectable Turf Mode/2WD/4WD
with Visco-Lok† auto-locking front differential
Driving Assistance CVT engine braking
ECO™/ECO™ Off/Work modes
Speed limiter
Power Steering Dynamic Power Steering (DPS™)
SUSPENSIONS
Front Suspension Double A-arm
10 in. (25.4 cm) suspension travel
Front Shocks Twin tube gas-charged shocks
Rear Suspension TTA with external sway bar
10 in. (25.4 cm) suspension travel
Rear Shocks Twin tube gas-charged shocks
TYRES & WHEELS
Front Tyres XPS Trail Force 27 x 9 x 14 in.
Rear Tyres XPS Trail Force 27 x 11 x 14 in.
Wheels 14 in. cast-aluminium
BRAKES
Front Dual 220 mm disc brakes
with hydraulic twin-piston callipers
Rear Dual 220 mm disc brakes
with hydraulic single-piston callipers
Brake-holding mechanism
DIMENSIONS & CAPACITIES
Cage Profiled cage, ROPS approved
Estimated Dry Weight 1,553 lb (706 kg)
L x W x H 121 x 62 x 76 in. (307.1 x 157.5 x 193 cm)
Wheelbase 83 in. (211.5 cm)
Ground Clearance 11 in. (27.9 cm)
Cargo Box Dimensions 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity 1,000 lb (454 kg)
Tailgate Load Capacity 250 lb (113.4 kg)
Storage Capacity Total: 10.4 gal (39.5 L)
Towing Capacity 2,500 lb (1,134 kg)
Payload Capacity 1,500 lb (680 kg)
Fuel Capacity 10.6 gal (40 L)
Person Capacity 3
FEATURES
Gauge 4.5 in. wide digital display
Battery 12 V (18 amp/h)
Magneto 650 W
Instrumentation DC outlet (10-A)
Lighting Front lighting output 140 W
LED tail lights
Winch N/A
Seat VERSA-PRO bench seat with passenger seats flipping up
Underside hooks
Steering Wheel Adjustable tilt steering
Protection Integrated front steel bumper
HMWPE central skid plate
Full hard roof
Hitch Type 2 in. hitch receiver with rear hitch and tow ball
WARRANTY
Factory Warranty 3-year unlimited km powertrain & Rotax® engine warranty and
1-year warranty & unlimited kilometers on the rest of this unit.
